Description

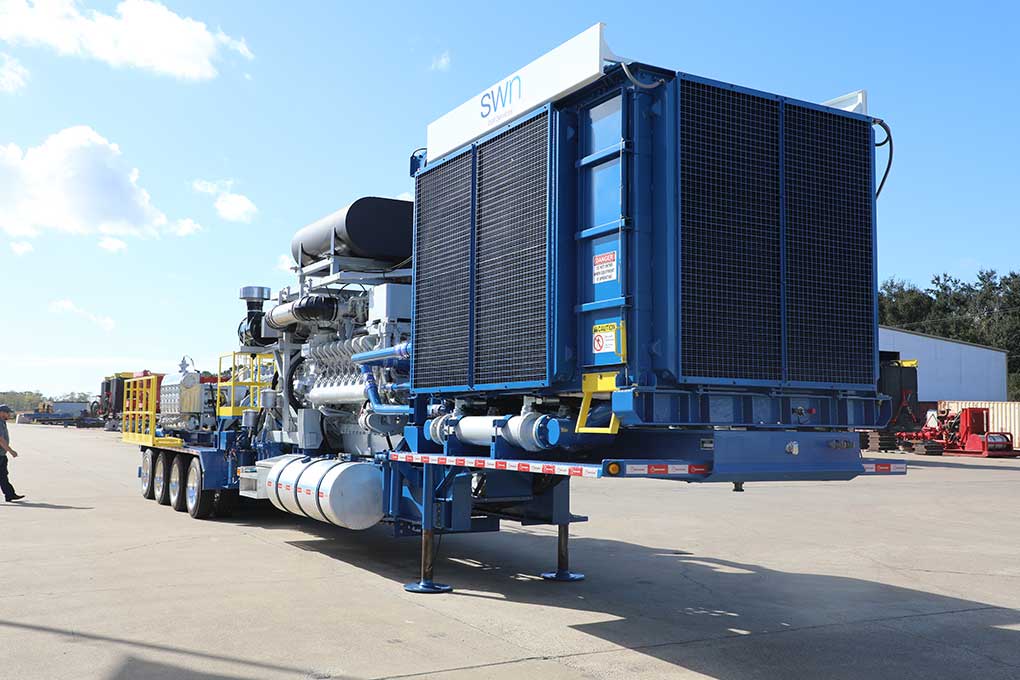

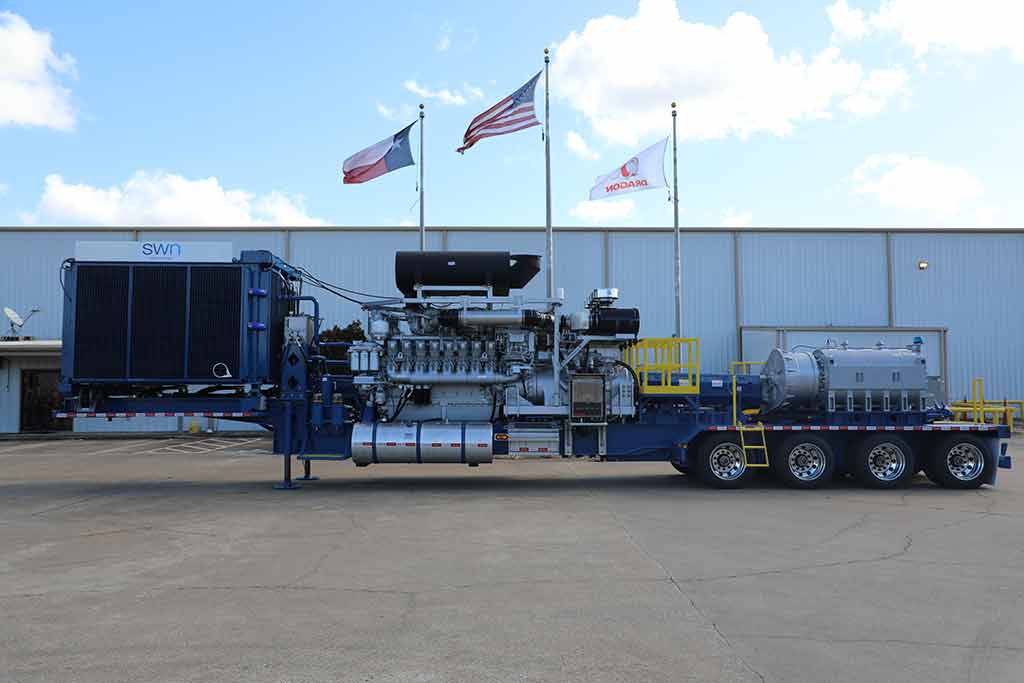

GENERAL UNIT DESCRIPTION
Each standard unit features the following components:

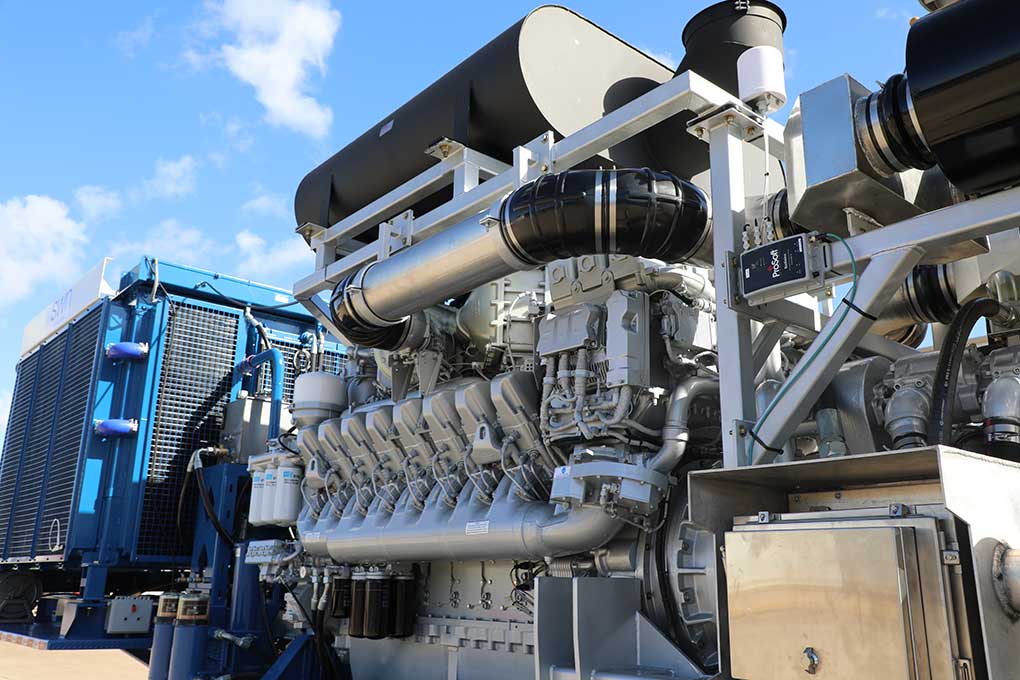

• MTU 16V4000T95 Tier IV Engine
• Caterpillar TH55-E90 Petroleum Transmission

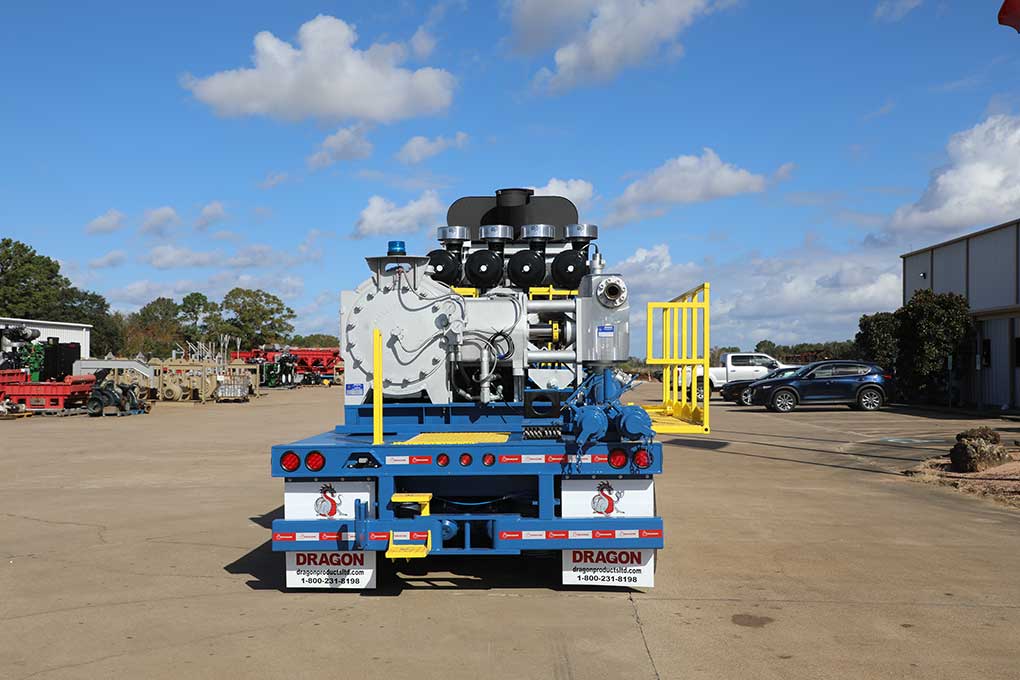

• Dragon 4000Q Pump and Stainless-Steel Fluid End
• Dragon Controls
PUMP SPECIFICATION
| Model | Dragon 4000Q Continuous Duty Pump and Fluid End |
| Fluid End | 2500 HP |
| Dimensions L x W x H | 90″ x 112″ x 50″ |
| Weight | 29,000 lbs. (Dry) |
| Rod Load | 275,000 lbs. |
| Rated Power | 4,000 BHP |
| Number of Cylinders | 5 |
| Stroke | 8″ |
| Gear Box Ratio | 6.963:1 |
| Maximum Pressure | Dependent on Fluid End Size |
| Lube Oil (Power End) | As Recommended by OEM |
| Grease Lube (Fluid End) | As Recommended by OEM |
| Miscellaneous | Driveline Flange as Recommended by OEM |
PUMP ADDITIONAL INFORMATION
A drip tray is installed below the fluid end, which includes
a 3/4” drain plug located on both ends for water to drain.
There is also a 3” collar with a removable plug for cleanout
underneath the drip pan.
ATTACHMENTS
-

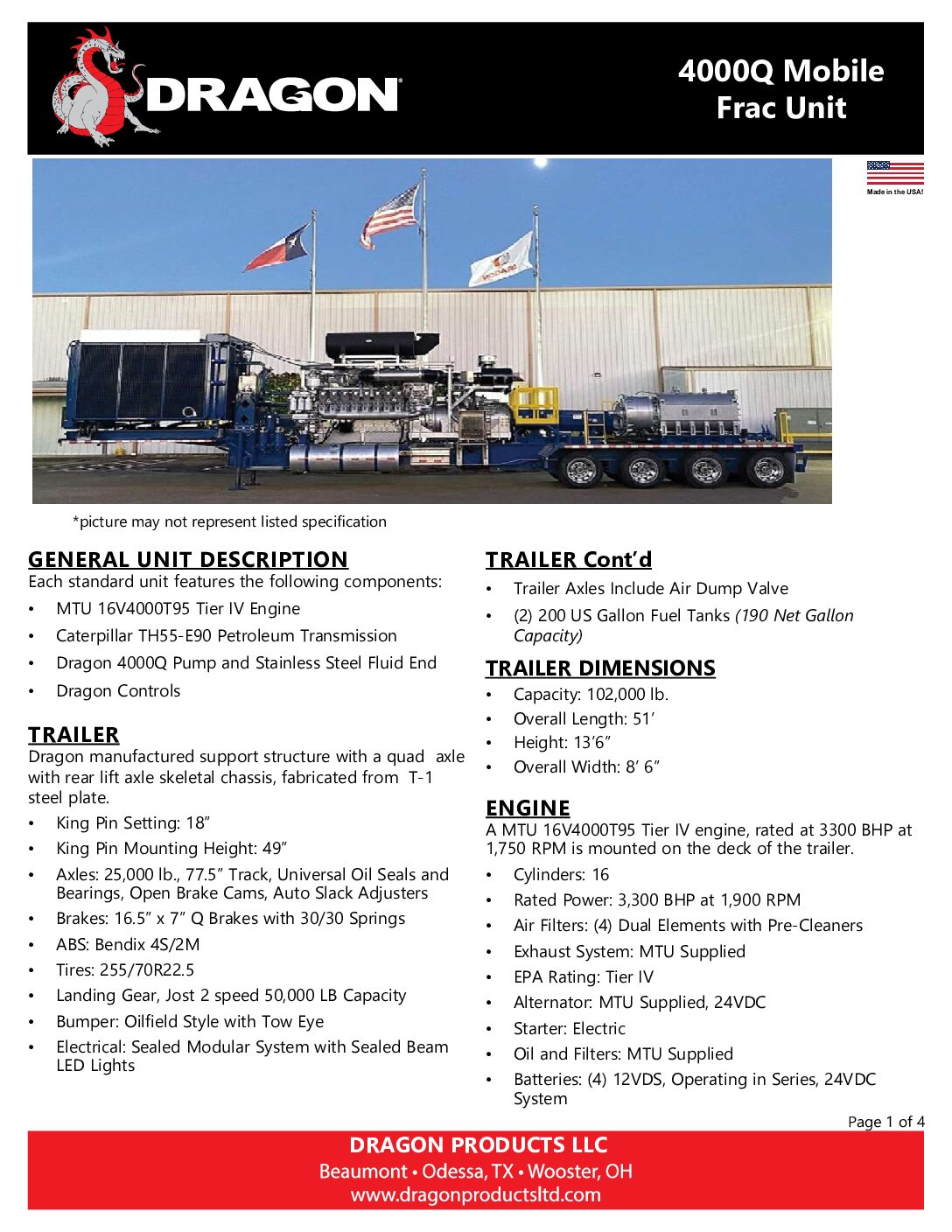

- Detailed Dragon Products Specification Sheet – pdf
