Description
SPECIFICATION
| Model | 8NHTH |
| Horsepower | 600 HP |
| Fuel Tank Capacity | 180 GAL |
| Max Flow | 8100 GPM @ 225’ TDH/97 PSI |
| Max TDH | 425’ TDH/184 PSI @ 500 GPM |
| BEP | 5700 GPM @ 325’ TDH/140 PSI |
ADDITIONAL INFORMATION
- 10×8 Pump Redi‐Prime vacuum assisted with Run Dry mechanical seal
- John Deere 600HP tier III engine
- Large 20,000# capacity Dual Axle Trailer
- Dual Torsion ride axles with 17.5” 16ply rated tires,
- 210 gallon fuel cell with Fuel cap risers
- Electric brakes, 2 back leveling jacks,
- 2 5/16 Coupler with 5 position channel adjustment
- Check Valve in diaphragm prime line, 1/2” ball valve on centrifugal pump for draining,
- Quad 8” Manifold Suction Dual 8” Manifold Discharge
- 10X8 8NHTH Cornell Redi‐Prime 8NHTH‐RP‐EM18DB‐1
- All iron construction
- Horizontal engine mount
- SAE 1 bell housing
- 14” drive coupling
- Tungsten carbide vs. silicon carbide cycloseal design
- Run‐dry reservoir and fittings
- 600HP John Deere Tier III Diesel Engine
- Model 6135H485‐600
- In‐Line 6 Cylinder, 4‐Cycle Turbocharged
- Electronic Fuel System
- Liquid Cooled
- 600HP / 448kW 2100RPM
- LOFA 750 W/ Auto Start
- 2 Stage Air Cleaner / Core and Fan Guards
- Engine Mounted ECU with de‐rates and shut
ATTACHMENTS
- Specification Sheet – jpg | pdf

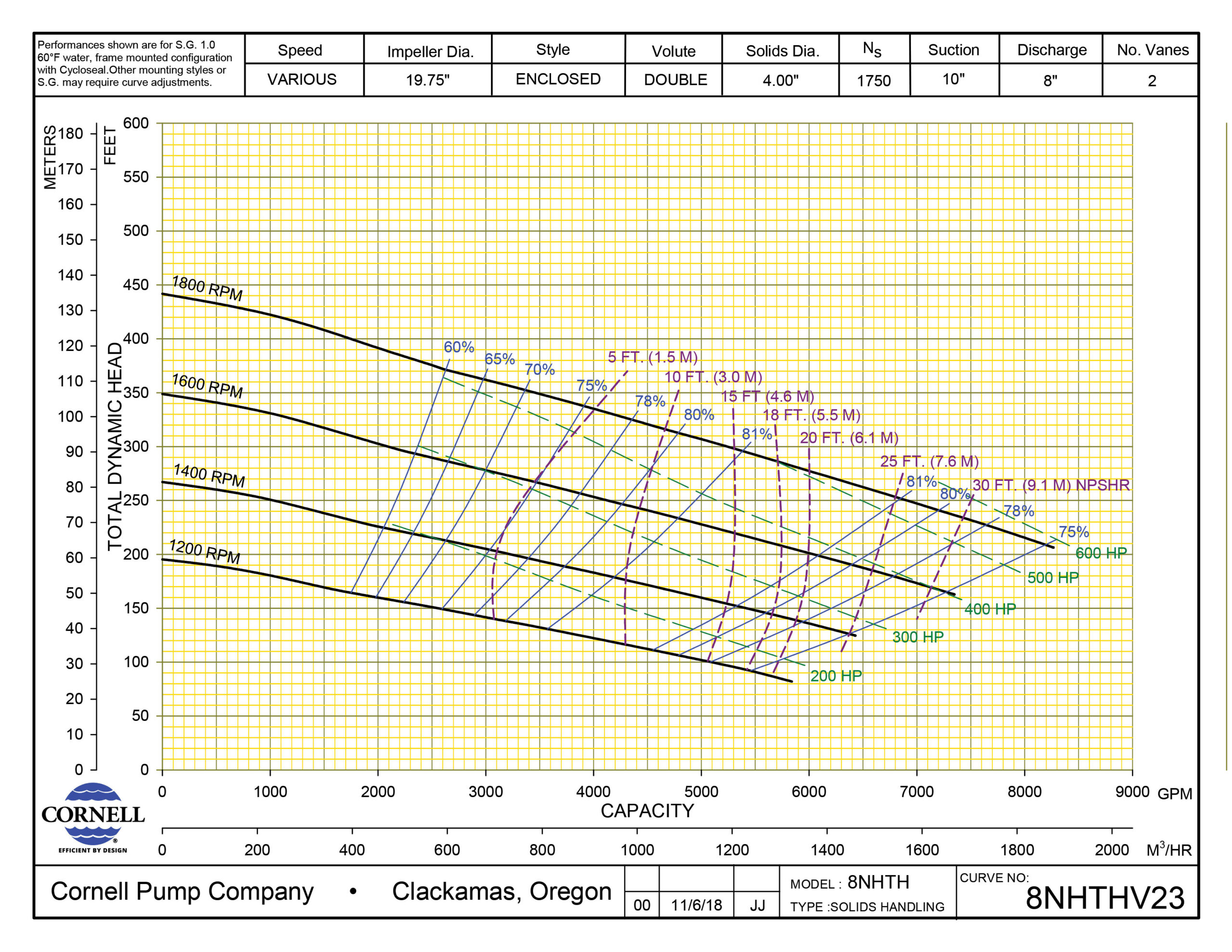

- Pump Curve – pdf
