Description
SPECIFICATION
| Dimensions (L x W x H) | 31.5” x 30.5” x 35.442” |
| Weight | TBD lbs |
| Rating | 800A, Three Phase (H, H, H, N, G), 600Y/347 VAC |
| Environmental Rating | Type 3R (Outdoor Use) |
| Input | 800A (2X) 400A, Cam Type, 16 Series, Straight, Panel Mount |
| Feed Thru | No |
| Main Breaker | No |
| Output | (4) – Cam Type, 16 Series, 100 – 250A, Three Phase (H, H, H, N, G), 600Y/347 Vac, Panel Mount
(2) – Cam Type, 16 Series, 160 – 400A, Three Phase (H, H, H, N, G), 600Y/347 Vac, Panel Mount ALL OUTPUTS PROTECTED BY BRANCH CIRCUIT BREAKERS |

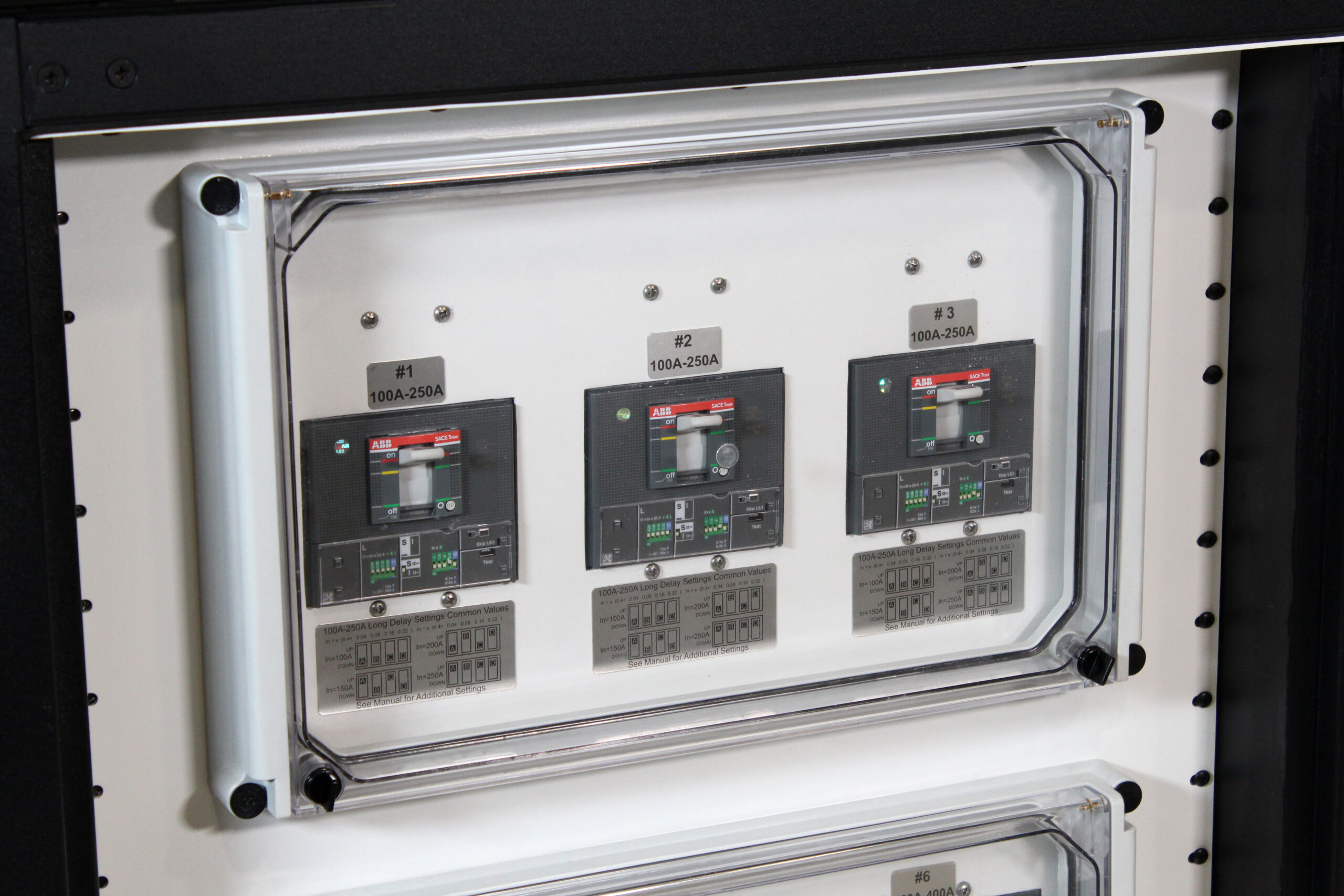

| Overcurrent Protection | (4) 100-250 Amp, three-pole, electronic circuit breakers with adjustable settings
(2) 160-400 Amp, three-pole, electronic circuit breakers with adjustable settings |
| Enclosure Type | Rack |
| Agency Approval | cULus Listed |
FEATURES & BENEFITS
- The cULus I Line Panel can handle a broad range of power distribution applications due to adjustable circuit breakers that enable overcurrent protection to be changed easily
- Fed directly from a power source, the I Line Panel distributes 800 Amps of 3 phase power to multiple circuits, creating a main power distribution station within the jobsite
- All Cam-Type outputs come equipped with adjustable breakers, eliminating the need to rewire circuit breakers to meet load requirements
- Onsite flexibility to meet job requirements with the ease of dipswitch settings and commonly used output configurations for an all-in-one power distribution station
- Unmatched flexibility and convenience to temporary portable power applications
- Satisfies NEC requirements for installations requiring a main disconnect for a range of varying downstream electrical loads such as portable kitchens, environmental control units, machinery, motors, tools and more
- Heavy-duty aluminum panels with integrated side handles designed for hand or strap lift
- Proprietary extruded aluminum framing technology provides resistance against bending for increased strength and light weight
MARKETS SERVED
- Oil & Gas for Upstream, Midstream and Downstream Applications
- Temporary Base/Man Camps
- Large Events
- Disaster Relief
