STANDARD FLOOR PLANS

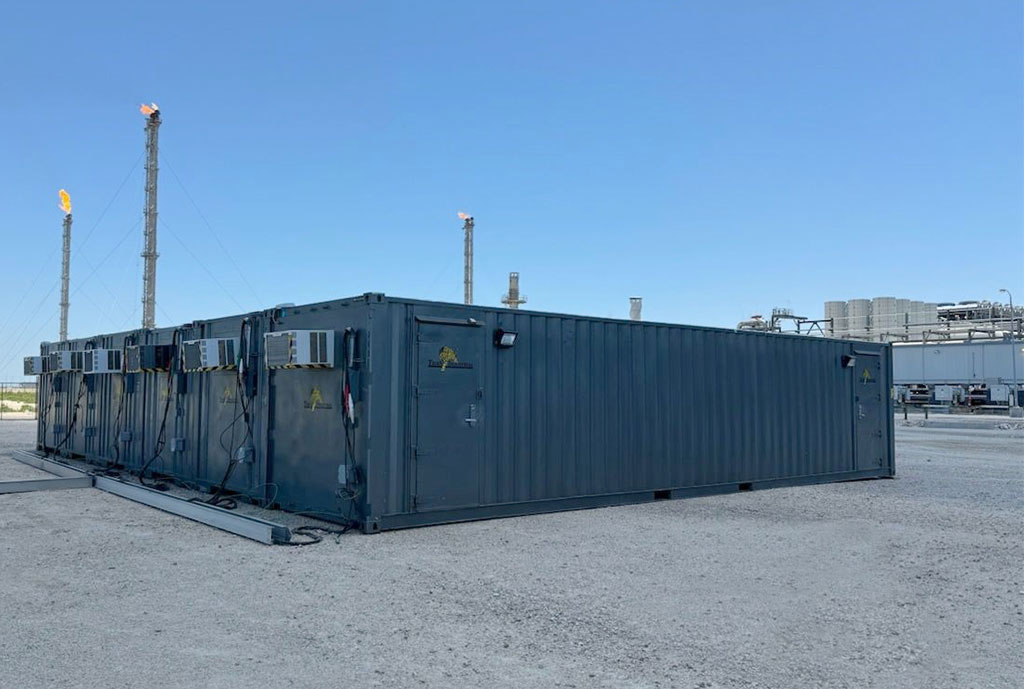

Below are the standard floor plans, for Tiger’s Multi-Plex Blast Resistant Buildings, however we are able to outfit any special request that you may require. Please click on the drawings below to enlarge the image.
| 24 x 40 Multi-Plex Blast Resistant Building | 40 x 40 Multi-Plex Blast Resistant Building |
 |
 |
SPECIFICATION
| PSI Rating | 8.0 | MS Duration | 200 |
| W x L x H | 8’ x 40’ x 8’6” | ||
| Weight | 15,000 LBS (Per Section) | ||
| HVAC | (2) Unit Non-Classified Electrical Insulated | ||
| Electrical | (1) 240 V 100 A Single-Phase Non-Classified | ||
| Blast Rated | (2) Doors on Each Endcap | ||
| Fire Protection | Smoke Detectors & Fire Extinguisher | ||
| Lights | LED Lights, External Explosion Lights, Emergency Exit Sign(s) |
||
| Outlets/Ports | (20) Electrical, (18) Data & (18) Phone Ports | ||
| Response Level | Medium | ||
| Lifting Lugs | 4 |
OPTIONAL UPGRADES
- LEL and H2S gas detection
- Office Partitions
- Bathrooms
- Multi-Unit Complexes
APPLICATION
- Power plants
- Oil refineries
- Industrial coatings projects
- Lead abatement projects
- Asbestos abatement projects
ATTACHMENTS
- BRB Catalog – Flipbook
