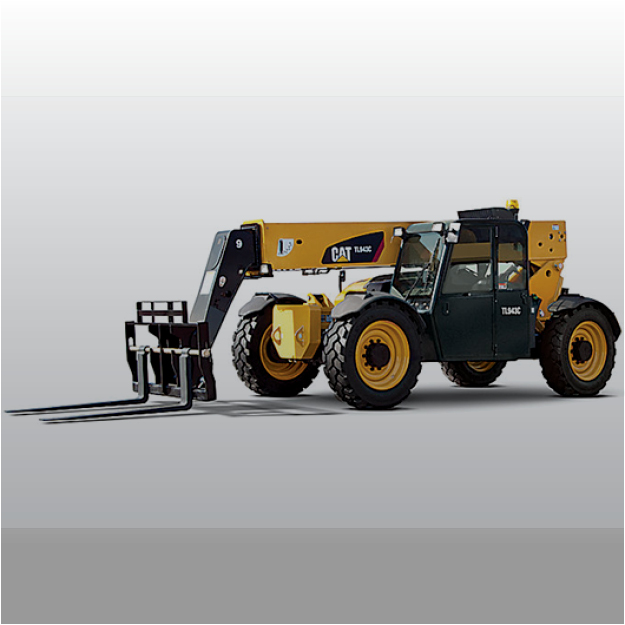

CAT TL943 Telescopic Handler

    Providing the most durable and robust rental equipment with a huge fleet of inventory to choose from.

    888-866-0047
    OR
    Email Tiger
    COMMON USES

    The CAT TL943 Telescopic Handler is commonly used in the oilfield for lifting and moving heavy equipment, materials, and tools to elevated locations, enhancing efficiency in operations. Its versatility allows it to navigate rough terrain and perform various tasks, such as loading and unloading supplies.

    Description

    SPECIFICATION

    Engine Model Cat® C3.4B Tier 4 Interim
    Engine Gross Power (Basic) 111.3 HP
    Operating Weight 26525.0 LBS
    Operating Weight
    • Rated Load Capacity 9000.0 lb
    • Maximum Lift Height 43.0 ft
    • Load at Max Height – No Stabilizers 7000.0 lb
    • Maximum Forward Reach 31.5 ft
    • Load at Max Reach – No Stabilizers 1200.0 lb
    • Top Travel Speed 20.3 mph
    • Load at Max Height 7000.0 lb
    • Load at Max Reach 1200.0 lb
    • Load at Maximum Height 7000.0 lb
    • Load at Maximum Reach 1200.0 lb
    Operating
    • Height 8.0 ft
    • Width 7.94 ft
    • Wheelbase 11.0 ft
    • Length to Fork Face 20.5 ft
    • Ground Clearance 19.0 in
    • Turning Radius Over Tires 12.0 ft
    Fuel Tank Capacity 38 GAL
    Hydraulic Tank Capacity 41.5 GAL



    Additional information

    Mats

    Used as a project worksite foundation, temporary roads, or stability for heavy equipment onshore with LMP Packages, tank cleaning jobs, and other jobs in remote locations.
