Description

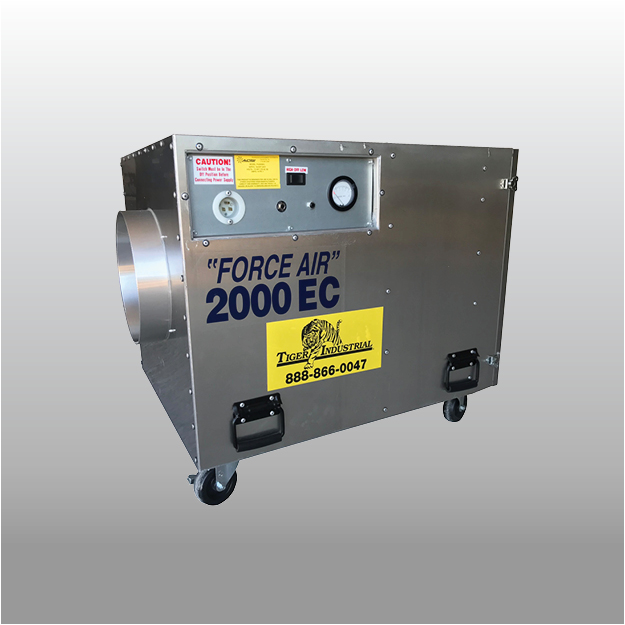

At an airflow rate of 2000 CFM, the FA2000EC provides more than 100 complete air exchanges per hour in a standard 12 ft × 12 ft room. The system is equipped with a true HEPA filter rated at 99.97% efficiency for particulate removal down to 0.3 microns. To optimize HEPA filter service life, the unit includes replaceable primary and secondary pre-filters. Replacement filters are standard and available from multiple suppliers.
The housing is fabricated from corrosion-resistant, heavy-gauge aluminum and sealed using Iron Grip neoprene gaskets to ensure an airtight enclosure. A link-lock latch mechanism allows quick access to internal components for filter replacement and maintenance. The unit is equipped with four 4-inch heavy-duty casters and four spring-loaded handles to facilitate transport and positioning.
Air movement is driven by a custom 1.75 HP motor coupled to a dynamically balanced blower. The motor/blower assembly is tripod-mounted with rubberized vibration-damping bushings to minimize operational noise and mechanical vibration. Precision tolerances are maintained throughout the assembly to prevent motor misalignment, rubbing, or drag.
Each FA2000EC unit is delivered fully assembled with filters installed and includes a one-year factory warranty. The unit is ready for operation upon delivery.
SPECIFICATION
| L x W x H | 37 1/8″ x 26 1/2″ x 32 1/2″ |
| Weight | 140 LBS |
| Air Flow | 1,975cfm / 1,000cfm |
| Power Supply | 115 VAC, 60H, 20amps |
| Body | .080 aluminum |
FEATURES AND BENEFITS
- Heavy-duty aluminum cabinet is lightweight, durable, rust-resistant
- Modular control panel, control panel unplugs for easy removal
- Sealed control box eliminates leakage around gauges
- Locks on the HEPA filter assures a positive seal around the HEPA filter
- Four heavy-duty swivel casters, two w/locks provide easy mobility
- Rugged carrying handles provide easy portability
